Sprinkler Systems
COMMERCIAL
F1FR SERIES QUICK RESPONSE
F1FR56, F1FRLO
K-factor: 5.6 (80) & 8.0 (115)
Temp OC: 57, 68, 79, 93 & 141
Thread size: 1/2” (15mm) & 3/4” (20mm)
Orientation: pendent, conical concealed, pendent recessed,
conventional, recessed HSW sidewall, sidewall & upright.
F1 SERIES STANDARD RESPONSE
F156, F1LO
K-factor: 5.6 (80) & 8.0 (115)
Temp oC: 57, 68, 79, 93, 141, 182 & 260
Thread size: 1/2” (15mm) & 3/4” (20mm)
Orientation: pendent, pendent recessed, conventional,
sidewall, recessed HSW sidewall & upright.

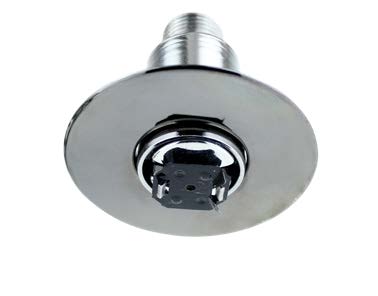

XL QUICK RESPONSE
For Life Safety Applications
K-factor: 5.6 (80)
Temp oC: 74
Thread size: 1/2” (15mm)
Orientation: pendent, horizontal sidewall & EC horizontal sidewall.
ESCUTCHEON
UL & FM Approved
Model FT screwed, one piece model D & model C, two piece
model FT screwed, model F1 or F2 & model HB.
Note: To maintain the approval for the sprinkler, the two piece
escutcheon must be approved for use with the sprinkler.
THERMO BULB LINK
UL Listed
Standard response or quick response bulb
Temperature range: 57oC (135oF) to 260oC (500oF)
Permanent load: 55lbs max.
For more information go to
